Technical Specifications
Frameset
Frame - M5 Alloy chassis and rear-end, asymmetrical design, 29/27.5" Trail Geometry with S-Sizing, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of trave
Seat Binder - Alloy, 38.6mm
Suspension
Rear Shock - Rock Shox Super Deluxe Ultimate, Rx Trail Tune,RC2T Damper, Hydraulic Bottom Out control , S1:210x50mm, S2-S6:210x55mm
Fork - RockShox Lyrik Ultimate, Charger 3 RC2 W/ButterCups, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel

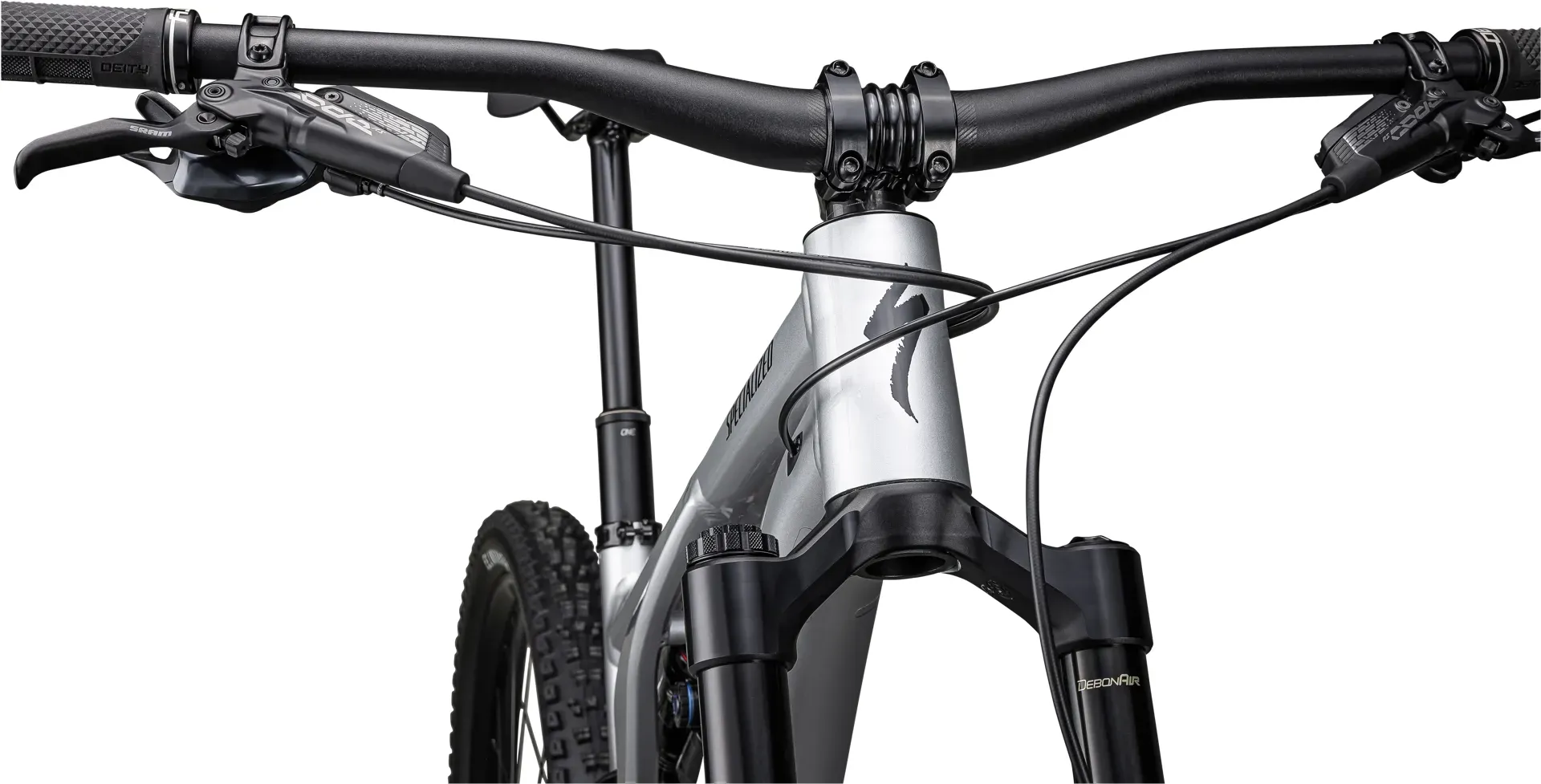

Cockpit
SeatPost - OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
Stem - Deity, 35.0mm
Handlebars - Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Saddle - Bridge Comp, Hollow Cr-mo rails, 155/143mm
Grips - Deity Grips
Brakes
Front Brake - SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline
Rear Brake - SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline
Drivetrain
Rear Derailleur - SRAM GX Eagle, 12-speed
Shift Levers - SRAM GX, trigger, 12-speed
Cassette - Sram XG-1275, 12-speed, 10-52t
Chain - SRAM GX Eagle, 12-speed
Crankset - SRAM GX Eagle Alloy, DUB, 165/170/175mm, 32t
Chainrings - 32T
Bottom Bracket - SRAM DUB, BSA 73mm, Threaded
Wheels & Tires
Rims - Roval Traverse 29F/27.5R Alloy, 30mm inner width, hand-built, 2Bliss Ready
Front Hub - Roval, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub - Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes - DT Swiss Competition Race
Front Tire - Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire - Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Inner Tubes - Standard, Presta Valve
Weight
Weight - 15.55kg (34 lb, 4.5 oz)
Weight Size - S4
